Building a bridge is a major responsibility. It requires a deep understanding of the soil, site conditions, and all relevant risk factors. No matter how promising a project looks on paper, if the preliminary phases are not handled seriously, the entire structure may suffer. Bridges are key elements in the transport network, used every day by hundreds or even thousands of vehicles. For this reason, there is no room for compromise or error.
In this article, we analyze three critical mistakes that can compromise bridge construction and explain how the Dromcons team prevents them through multidisciplinary expertise, proper field studies, and rigorous execution control.
Contents
- Mistake 1: Lack of a solid and up-to-date geotechnical study
- Mistake 2: Poor design of joints and expansion systems
- Mistake 3: Failure to follow execution phases and lack of competent site supervision
- How Dromcons contributes to the success of a bridge project
- Portfolio examples: verified results
- Do you have a road bridge in planning or execution? Work with specialists who prevent problems, not just fix them
Mistake 1: Lack of a solid and up-to-date geotechnical study
One of the most serious mistakes in the early stage of a bridge project is the lack of a complete and properly prepared geotechnical study. Such a study should include boreholes at different depths, laboratory testing of soil samples, dynamic penetration tests, and detailed interpretation of results.
What risks come with a poorly documented foundation
Soil type and behavior directly influence the chosen foundation solution. Unstable ground can lead over time to settlement or cracks in the bridge structure. Without an updated geotechnical study, the designer has no precise data about:
- the strength and composition of soil layers;
- the presence and level of groundwater;
- landslide or liquefaction risks;
- soil behavior under repeated loads.
Examples of instability, settlement, and landslides
- A bridge placed on uncompacted sandy ground may experience differential settlement at one end, affecting deck alignment and traffic safety.
- Failing to identify a deep plastic clay layer may generate slope instability, especially in areas with steep terrain or major water infiltration.
How Dromcons approaches field studies
At Dromcons, every bridge construction project starts with a solid geotechnical foundation, developed in-house using our own equipment and laboratory.
- Boreholes up to 300 m deep – we perform deep geotechnical drilling to obtain a clear and detailed picture of the soil structure and potential risks.
- Technical reports with engineering recommendations – we prepare complete technical documentation adapted to real field conditions.

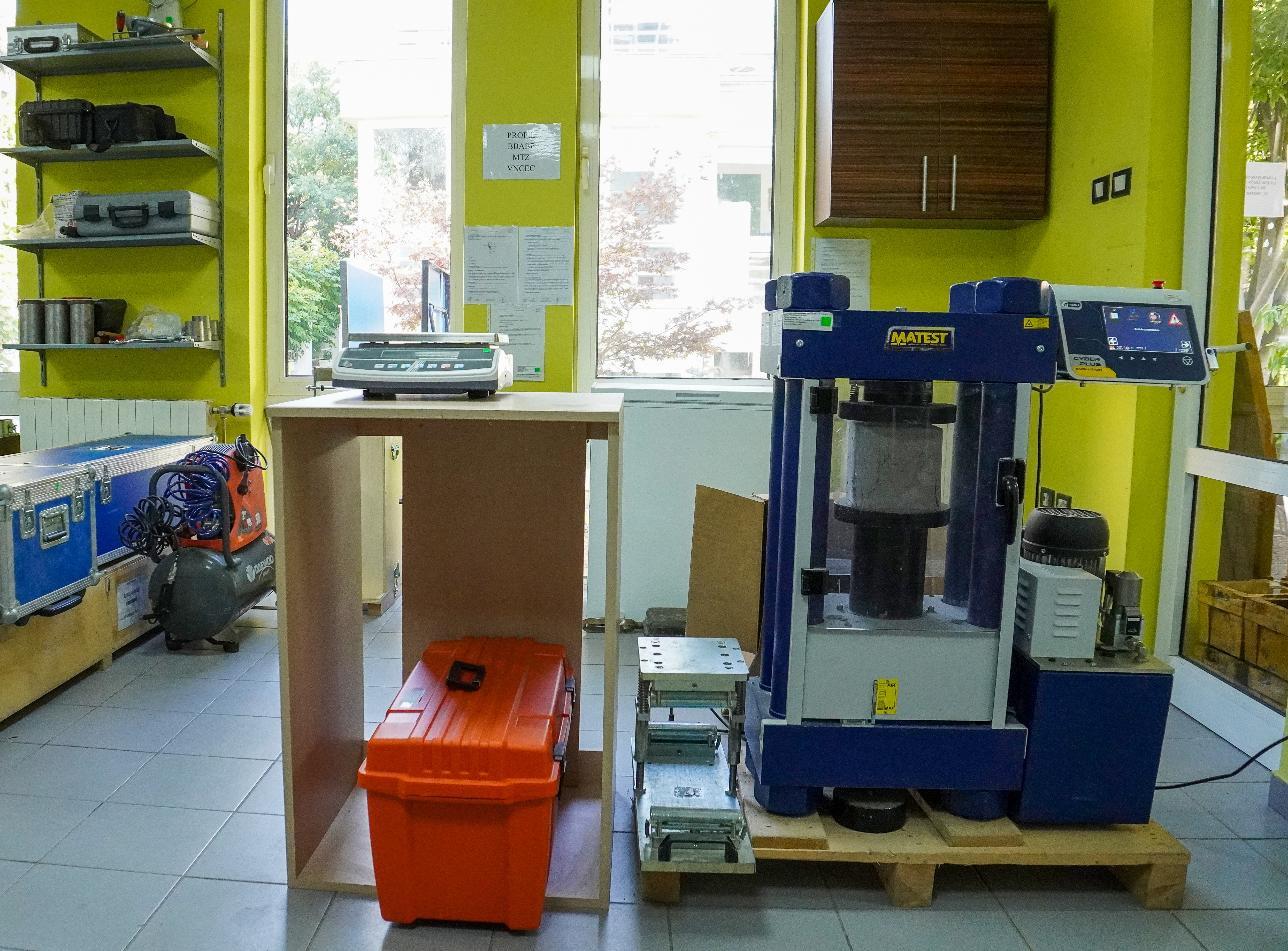

- Authorized in-house laboratory – we carry out soil testing, geotechnical testing, and fresh and hardened concrete tests internally.
Our certified laboratory is dedicated to providing accurate data, essential for the safety and durability of any road infrastructure structure.
Mistake 2: Poor design of joints and expansion systems
What expansion joints are and why they matter
Joints are controlled spaces between structural segments of a bridge, allowing materials to expand and contract depending on temperature, traffic, and vibration. If they are not designed properly, cracks, premature deterioration, structural noise, and even loss of waterproofing can occur.
The importance of advanced structural analysis
Proper expansion joint design involves structural simulations and analysis that take into account all stress factors. Modern 3D modeling software is used to simulate bridge behavior under extreme temperatures, heavy traffic, and repeated vibration.
What can happen without proper calculations
- Blocked joints can lead to cracking of the bridge deck.
- Unsealed joints can allow water infiltration, causing accelerated corrosion and reinforcement damage.
- Poorly positioned joints can cause uneven load distribution and premature wear.
The role of Dromcons technical consulting
The Dromcons team provides specialized technical consulting in construction, essential for correct joint design and for checking bridge documentation:
- Complete technical evaluation of projects, including simulations and performance analysis.
- Material recommendations to select the most suitable technical solutions.
- Technical documentation review to ensure compliance with all standards in road bridge construction.
- Project management consulting, from site organization to cost control.
Mistake 3: Failure to follow execution phases and lack of competent site supervision
Another common mistake in bridge construction is failing to follow execution phases correctly or rushing certain critical stages. Without competent site supervision and quality control, the risk of structural defects increases significantly.
Why skipping stages causes structural problems
Road bridge construction requires a clear sequence: site organization, foundation works, girder installation, deck concreting, waterproofing, testing, and final acceptance. When these stages are rushed or omitted, the following may occur:
- water infiltration in the deck area if waterproofing is not applied correctly;
- cracks caused by concrete that was not allowed enough time to mature;
- reinforcement errors due to missing intermediate checks.
Impact on durability and traffic safety
Execution errors reduce the bridge’s service life and may lead to expensive repairs after only a few years of use. Even more seriously, they can directly affect traffic safety.

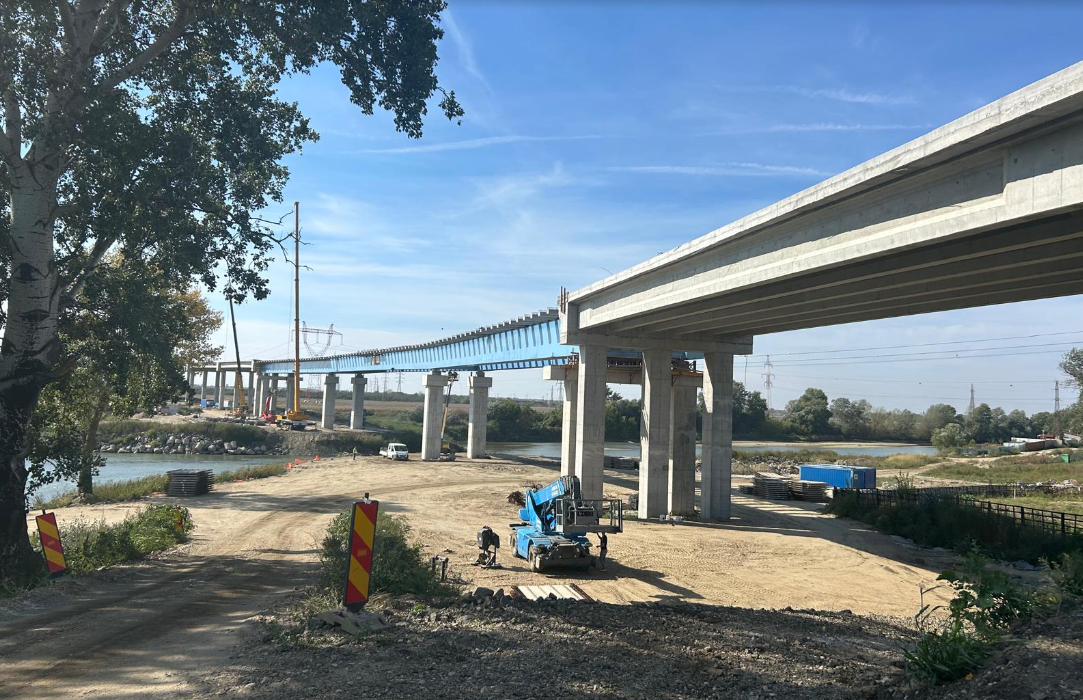

How Dromcons ensures execution control
- We supervise all construction phases together with the client.
- We document and verify every step, from reinforcement placement to concrete pouring.
- We provide internal quality control, including through our authorized in-house laboratory.
How Dromcons contributes to the success of a bridge project
Multidisciplinary expertise
We have more than 20 years of experience in road infrastructure projects and cover the entire process:
- bridge design;
- technical consulting for bridges and roads;
- road bridge execution and related works;
- testing and verification through our in-house laboratory.
Compliance with technical standards
We strictly follow the applicable standards and regulations (AND 200, NP 082, STAS, Eurocodes), so that every bridge designed and executed by Dromcons meets all safety and durability requirements.
Strong portfolio
More than 100 successfully completed projects in civil, industrial, and road infrastructure construction confirm our quality-oriented approach and field-proven results.
Portfolio examples: verified results
A relevant example is the design and execution of a road bridge on DN14A, km 7+466, in Blăjel, carried out together with GEIGER Transilvania SRL.
- The geotechnical studies included medium and shallow boreholes, plus super-heavy dynamic penetration tests.
- A detailed topographic study was carried out using modern surveying equipment.
- All data was integrated into a complete technical project, with ongoing assistance during execution.
- Modern construction technologies were used, reducing work time and ensuring a high level of safety and durability.
You can see images and other similar projects in the Dromcons portfolio for road and bridge design.
Do you have a road bridge in planning or execution? Work with specialists who prevent problems, not just fix them
A well-built bridge starts with correct design, a complete geotechnical study, and carefully supervised execution. The Dromcons team is trained to prevent critical mistakes through expertise, clear procedures, and strict control at every stage.
Request a custom quote or technical consulting for bridge projects. We are ready to build responsibly together with you. See also our road and bridge design services.
